Universal+ and Exo-Core Valve Lengths Explained:Updated 6 months ago

Universal+ and Exo-Core Valve Lengths Explained:

Both the Universal+ and Exo-Core valves use the same base stem. This is to allow an upgrade path from Universal+ to Exo-Core by the purchase of Exo-Core Housing Kit.

The Exo-Core Housing Kit quickly converts Stan’s Universal+ valves to Stan’s revolutionary full-featured Exo-Core tubeless valves. Included in the kit are one pair each of the Exo-Core housing and brass core pin.

To make the conversion to Exo-Core, simply remove the Presta valve core from the Universal+ valve body, insert the Exo-Core brass core, and twist on the Exo-Core housing.

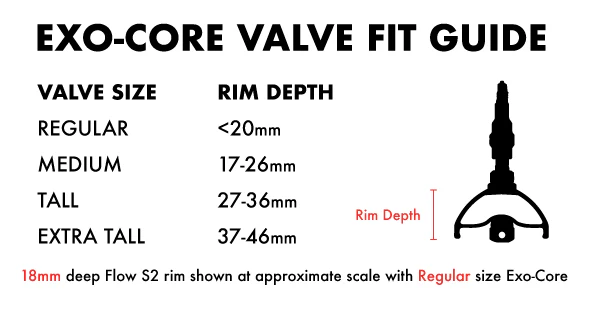

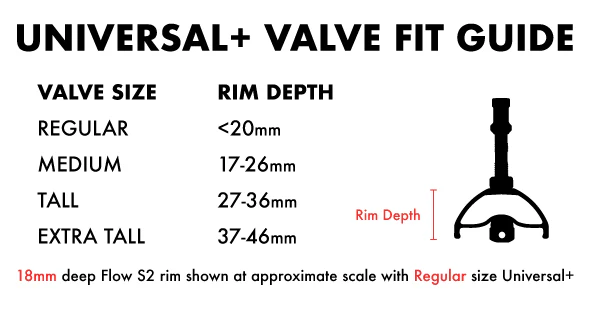

For this reason, you will notice the fit guide for both valves is identical. There are possibilities that the Universal+ may fit rim depths outside the parameters of the fit guide but then would not be compatible with the upgrade path and were omitted.

Continue to the bottom to find the exact measurements of each base stem and decide for yourself if a specific size will meet your needs.

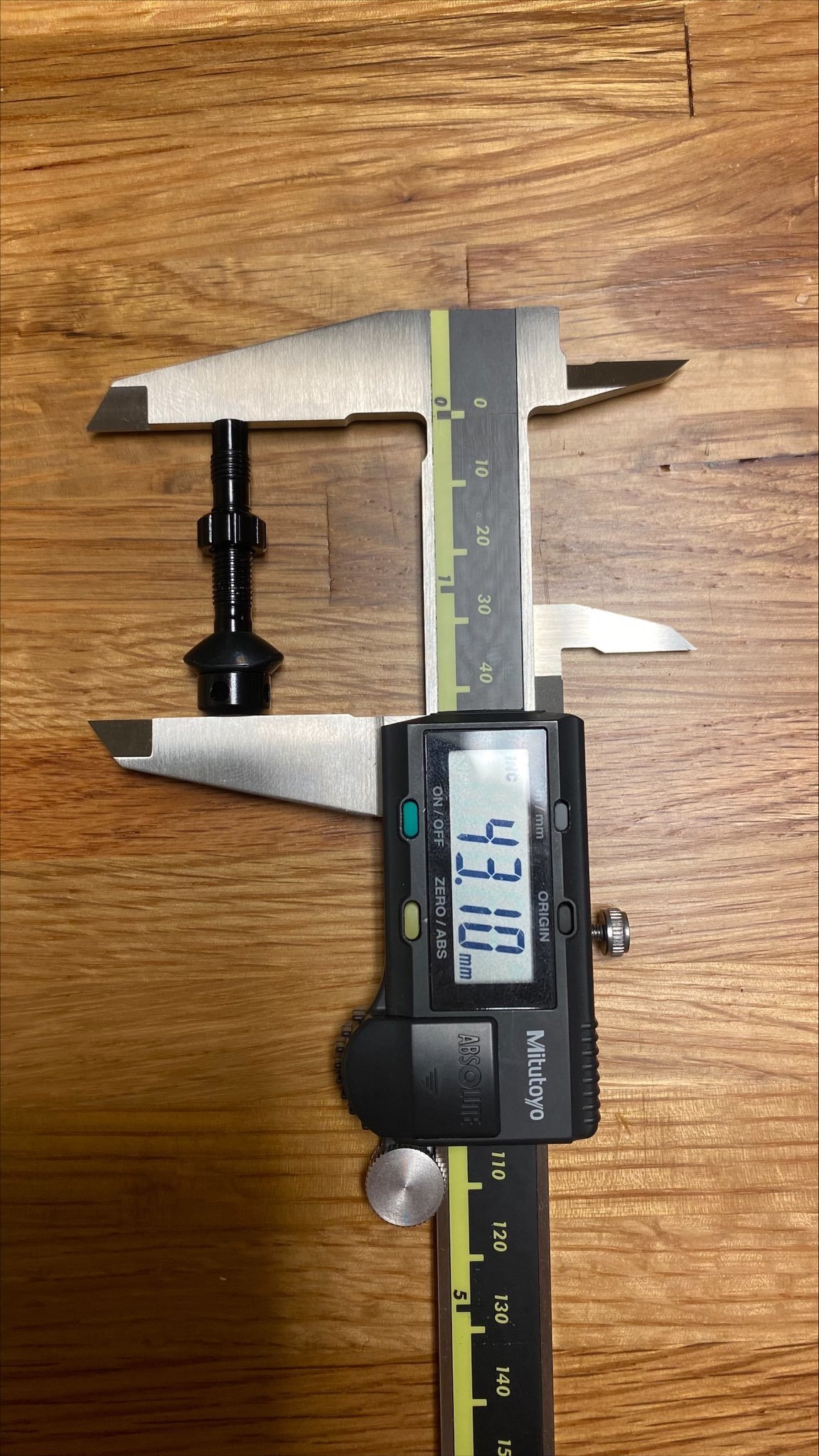

Regular: 43.10mm total length

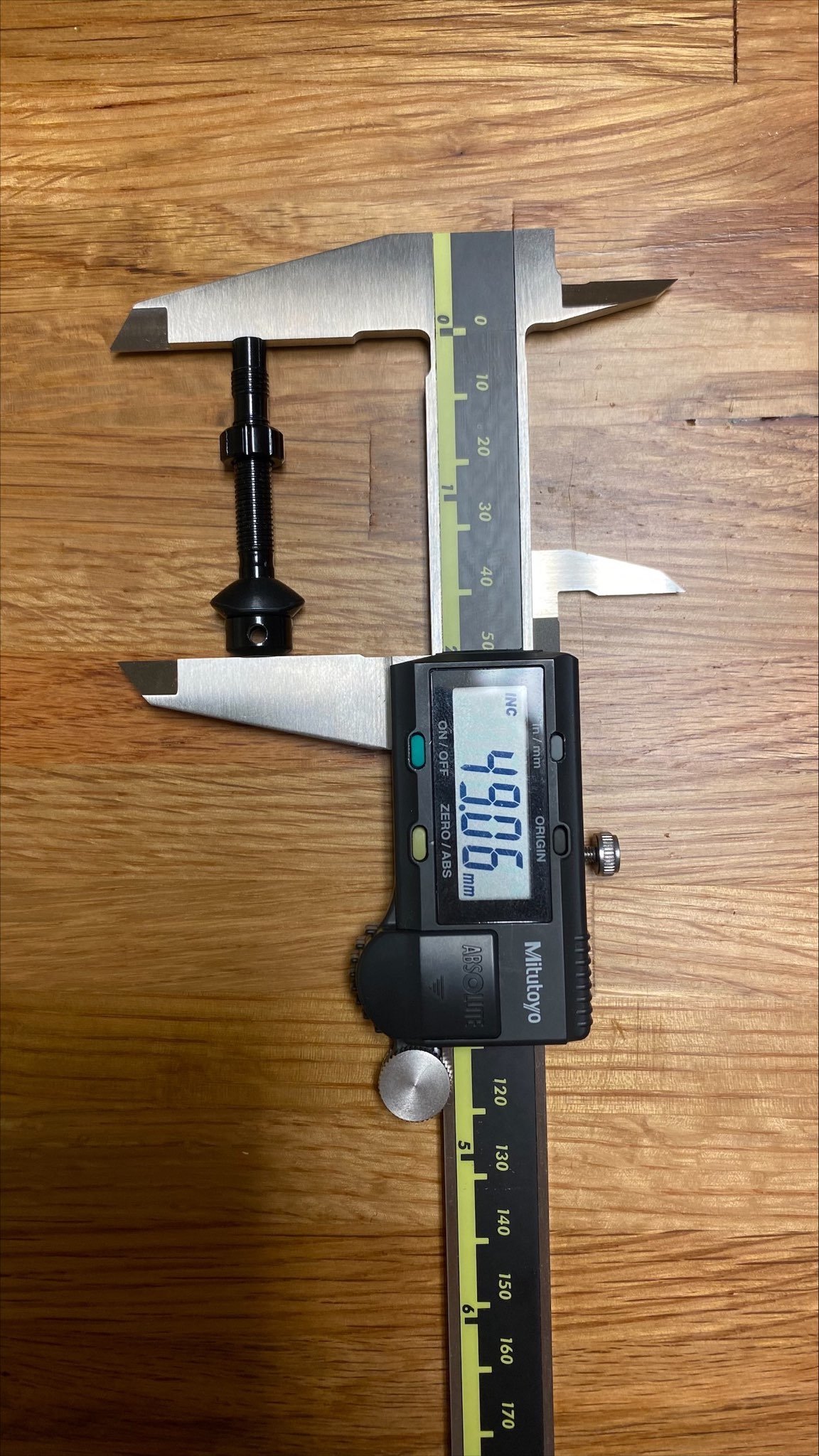

Medium: 49.06mm total length

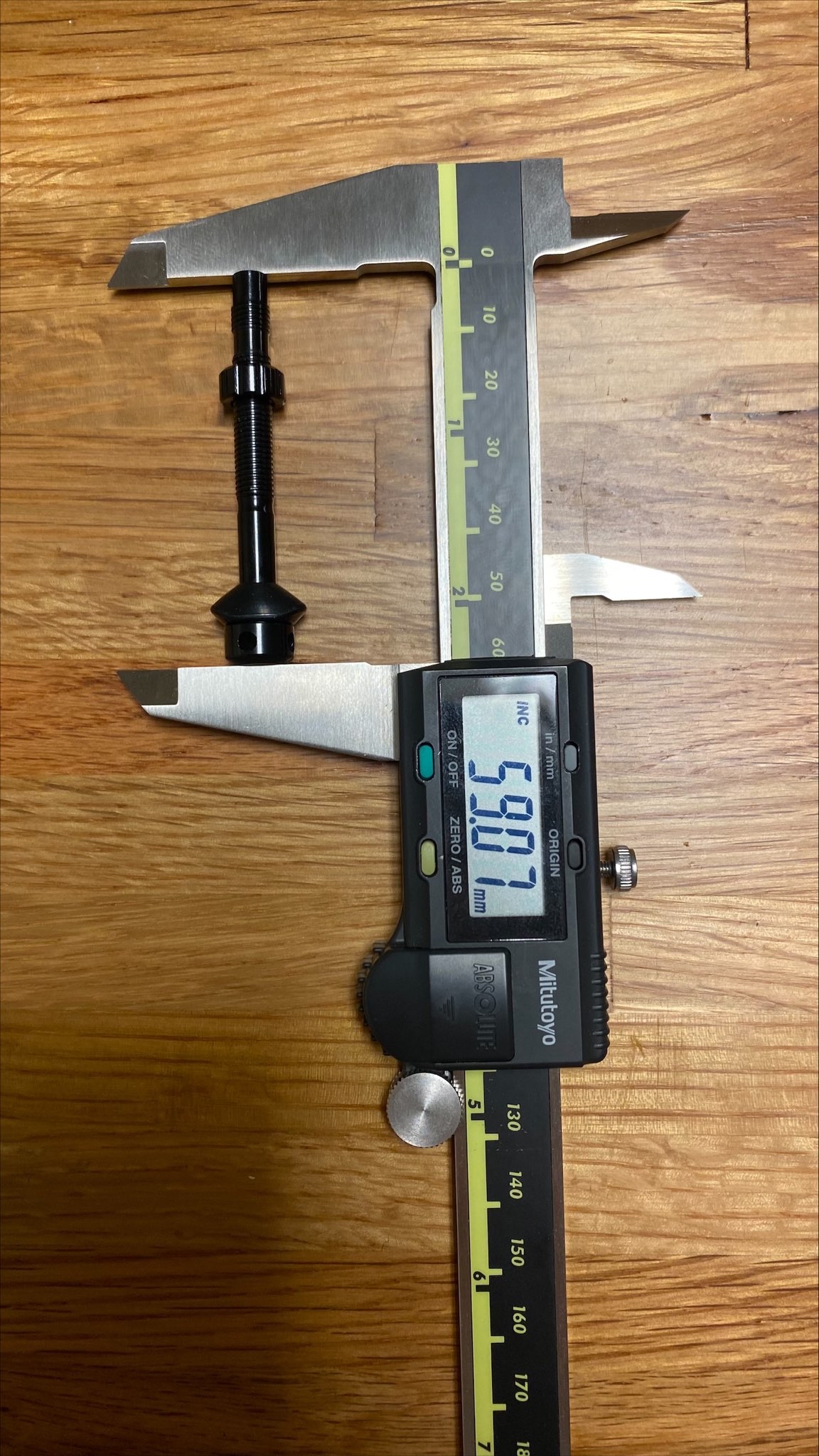

Tall: 59.07 total length

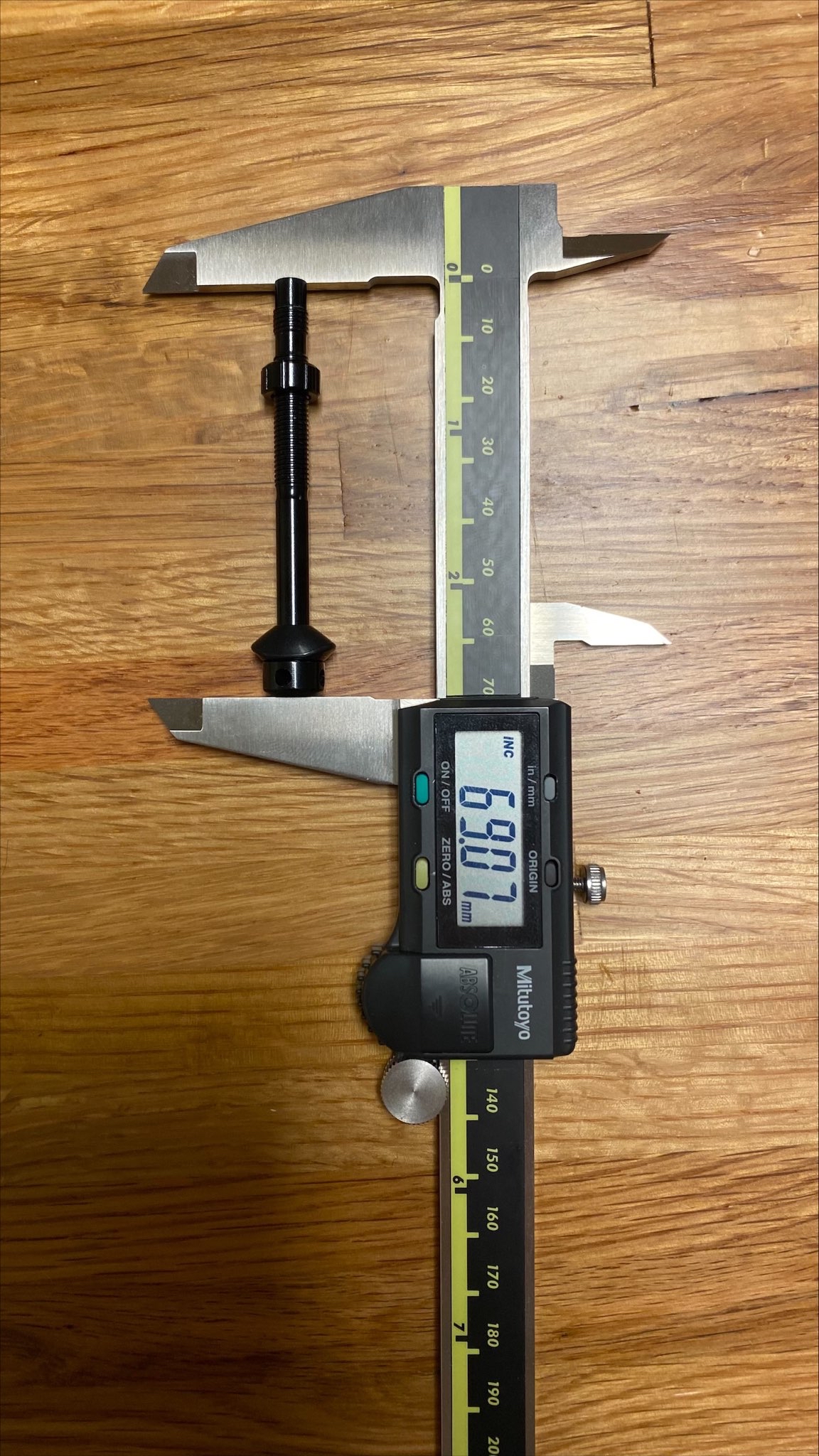

Extra Tall: 69.07mm total length
